EV6016-0-00,EV6016-1-00 SOLENOID VALVE

一、名称

SOLENOID VALVE

电磁阀

二、件号

EV6016-0-00,EV6016-1-00

三、章节号

36-11-06

四、适用机型

A319/A320

五、系统

36-PNEUMATIC

气动

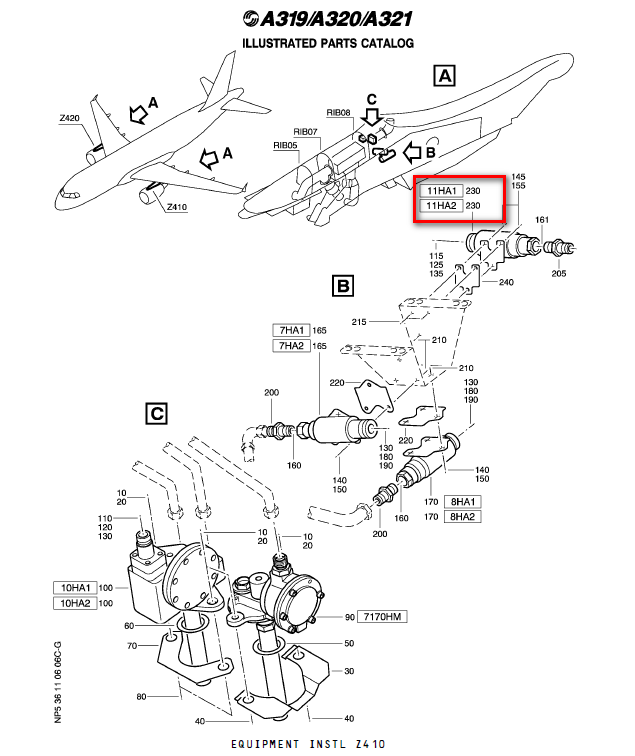

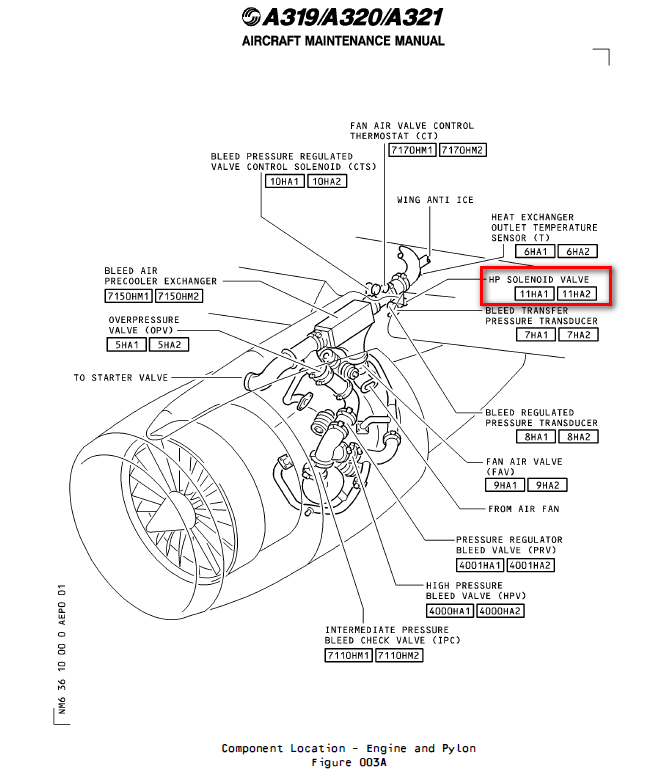

六、安装位置

发动机吊架

七、部件原理

1. DESCRIPTION

a – Function

The Solenoid valve P/N EV6016-0-00C or EV6016-1-00 (11HA) is part of the Engine Bleed Air System of the Airbus A319 and 318 A/C.

This component is electrically controlled to ensure the HPV (4001 HA) closure in certain flight configuration by venting the HPV (4001 HA) / PRV (4000 HA) sense line.

b – Full description

The solenoid valve is an assembly that includes one piece only. It cannot be disassembly and has these mains components:

– a solenoid (1)

– a electric connector (2)

– a pressure port (3)

– a fixing plate (4)

1. 描述

a – 功能

电磁阀件号EV6016-0-00C或EV6016-1-00（11HA）是空客A319和318飞机发动机引气系统的一部分。

该部件通过电气控制，在特定飞行状态下通过排空HPV(4001 HA)/PRV(4000 HA)的感应管路，确保HPV(4001 HA)关闭。

b – 完整描述

该电磁阀为单件式组件，不可拆卸，主要包含以下部件：

– 电磁线圈 (1)

– 电气连接器 (2)

– 压力口 (3)

– 固定板 (4)

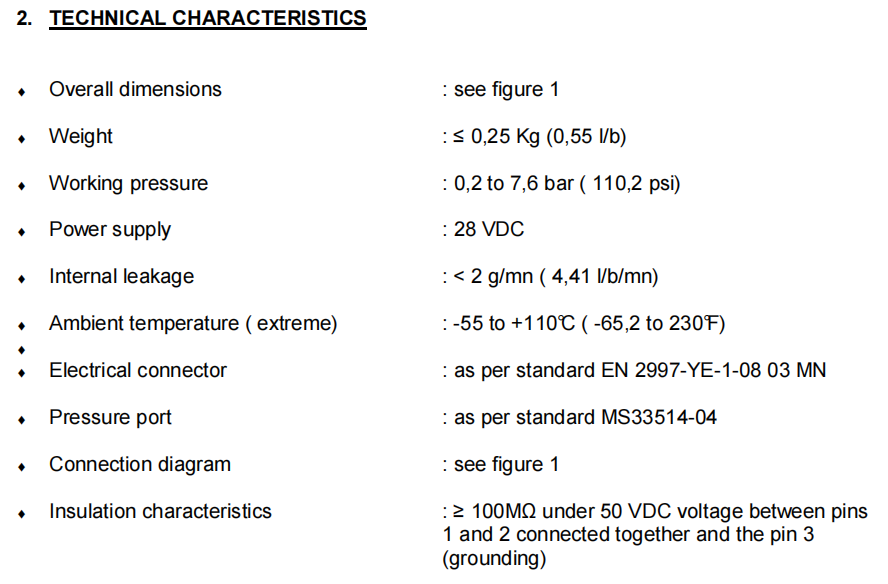

八、工作参数

九、在飞机系统中的工作原理及互联

A solenoid valve which allows the air in the sense line between the PRV and the HPV to vent to the atmosphere. This causes the HPV to close.

一个电磁阀，允许PRV与HPV之间感应管路中的空气向大气排放。这将导致HPV关闭。

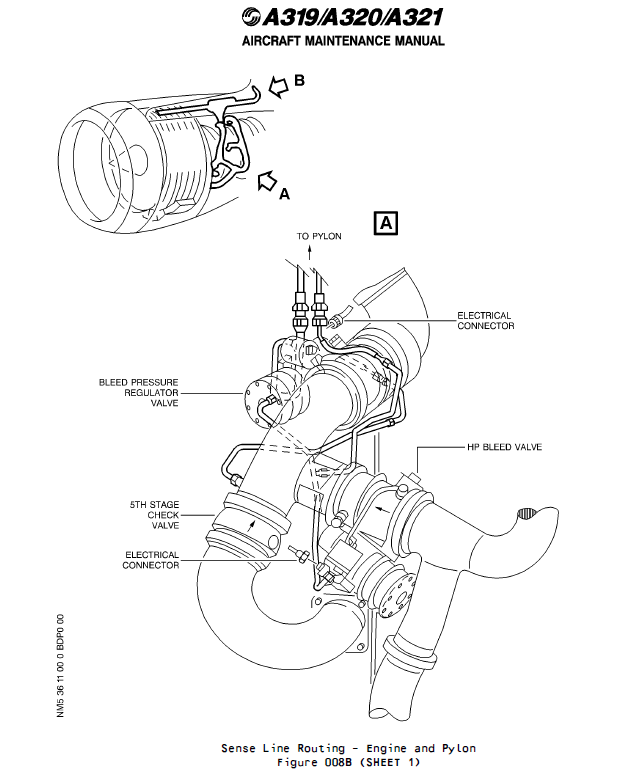

A solenoid is installed on a bracket in each pylon. It is connected by a sense line to the HPV-PRV coupling sense line. When the engine is used with the old engine bleed air design, the Thrust Specific Fuel Consumption (TSFC) increases. This is because of low IP engine pressures give permanent HP bleed.

To avoid this, during cruise with normal bleed condition:

– Wing Anti-Icing (WAI) not selected ON,

– Normal bleed configuration (2 bleeds, 2 packs),

– Ps3 more than or equal to 85 psig,

– P0<7.65 psig.

The solenoid is energized by the Bleed monitoring computer (BMC). It opens to ambient the HPV-PRV coupling sense line which lets HPV controlled close pneumatically.

每个发动机吊架上均安装有电磁阀，其通过感应管路连接至HPV-PRV联接感应管路。当发动机采用老版引气设计时，推力比燃料消耗量(TSFC)将增加。这是由于低的IP进气压力导致高压引气永久开启。

为避免此现象，在巡航且引气状态正常时：

– 翼面防冰系统(WAI)未开启，

– 正常引气构型（2引气点，2套防冰系统），

– Ps3压力≥85 psig，

– P0压力<7.65 psig。

该电磁阀由引气监控计算机(BMC)供电。其开启后将HPV-PRV联接感应管路接入大气，使HPV通过气动控制关闭。

Solenoid HP Bleed

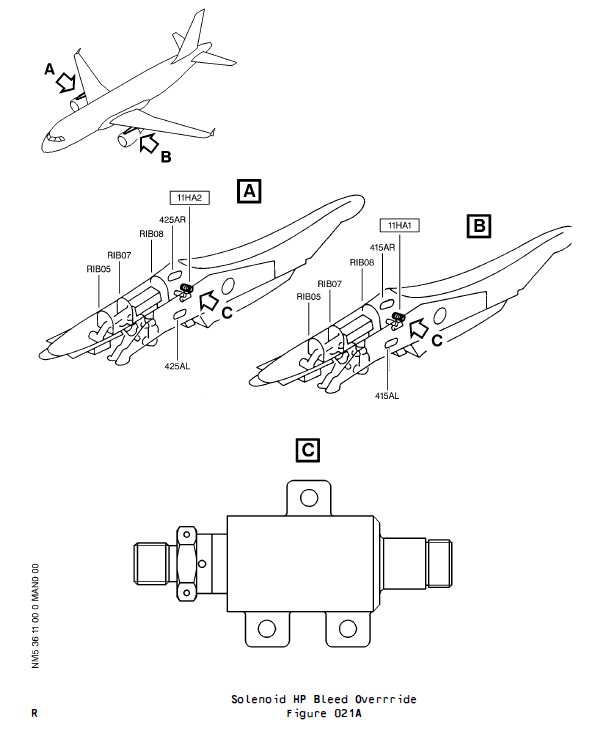

(1) Solenoid HP Bleed Override (Ref. Fig. 021A)

(a) Although allowing the air bleed on the IP port of the engine, the solenoid when energized permits to control closure of the HP Bleed Valve.

(b) Operation

The unit comprises a solenoid actuated valve, with spring return. When the unit is de-energized, the valve seals the HPV to PRV sense line, the internal parts of the solenoid are at atmospheric pressure.Energizing the unit opens the valve allowing air to flow from the HPV to PRV sense line to atmosphere.

高压引气电磁阀

(1) 电磁阀高压引气强制控制（超控）（参见图021A）

(a) 该电磁阀通电时可控制HPV关闭，同时允许发动机IP级进行空气引气。

(b) 工作原理

该部件包含一个电磁驱动阀，配有弹簧复位机构。当部件断电时，阀门密封HPV至PRV的感应管路，电磁阀内部处于大气压力状态。通电后阀门开启，允许空气从HPV 至PRV的感应管路向大气排放。
